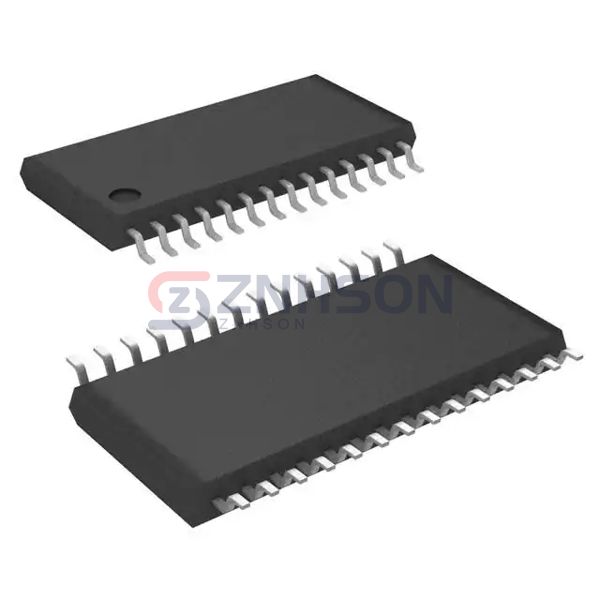

MIC4607-1YTS-T5
Microchip Technology
Microchip Technology
IC GATE DRVR HALF-BRIDGE 28TSSOP
$6.09
Available to order
Reference Price (USD)
1+
$6.09000
500+
$6.0291
1000+
$5.9682
1500+
$5.9073
2000+
$5.8464
2500+
$5.7855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Microchip Technology's MIC4607-1YTS-T5 represents the cutting edge of PMIC - Gate Driver technology, engineered to deliver unmatched switching performance for power electronics. This IC classification specializes in synchronous rectification and half-bridge configurations with integrated bootstrap diodes. Notable characteristics comprise UVLO protection, programmable turn-on/off thresholds, and 4A peak output current capacity. Primary applications span data center power supplies, welding equipment, and DC-DC converters. A concrete example: the MIC4607-1YTS-T5 enables 98% efficiency in 1kW telecom power modules while withstanding 100V/ns common-mode transients. The device's reinforced isolation meets IEC 61800-5-1 standards, particularly valuable for medical imaging systems and railway traction converters.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: 3-Phase
- Number of Drivers: 6
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 5.25V ~ 16V
- Logic Voltage - VIL, VIH: 0.8V, 2.2V
- Current - Peak Output (Source, Sink): 1A, 1A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): 108 V
- Rise / Fall Time (Typ): 20ns, 20ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 28-TSSOP
