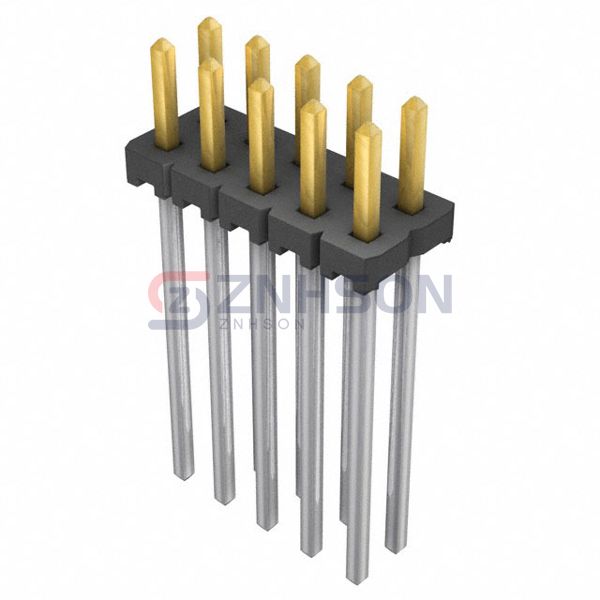

MTLW-105-09-L-D-480
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 10POS 2.54MM
$2.38
Available to order
Reference Price (USD)
1+
$1.53000
10+
$1.38400
100+
$1.18650
500+
$0.98876
1,000+
$0.84750
5,000+
$0.75145
10,000+
$0.73450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The MTLW-105-09-L-D-480 by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the MTLW-105-09-L-D-480 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.480" (12.19mm)
- Contact Length - Post: 0.190" (4.83mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.060" (1.52mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 5.2A per Contact
- Voltage Rating: -
