NGTB40N120IHLWG
onsemi
onsemi
IGBT 1200V 40A TO247
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NGTB40N120IHLWG from onsemi is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose NGTB40N120IHLWG for superior performance in your next power electronics project.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 320 A
- Vce(on) (Max) @ Vge, Ic: 2.35V @ 15V, 40A
- Power - Max: 260 W
- Switching Energy: 1.4mJ (off)
- Input Type: Standard
- Gate Charge: 420 nC
- Td (on/off) @ 25°C: -/360ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
Infineon Technologies
IRGP4266D-EPBF
STMicroelectronics
STGW30H60DF
onsemi
FGA60N60UFDTU
Infineon Technologies
IRGB6B60KPBF
Infineon Technologies
IRG4BC30K
IXYS
IXGH20N60BU1
Infineon Technologies
IKQ120N60TAXKSA1
Fairchild Semiconductor
SGL50N60RUFDTU
IXYS

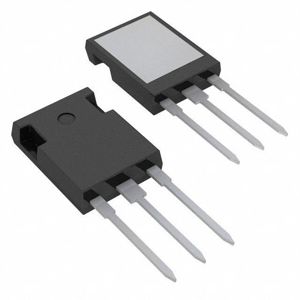

IXGR60N60B2D1
