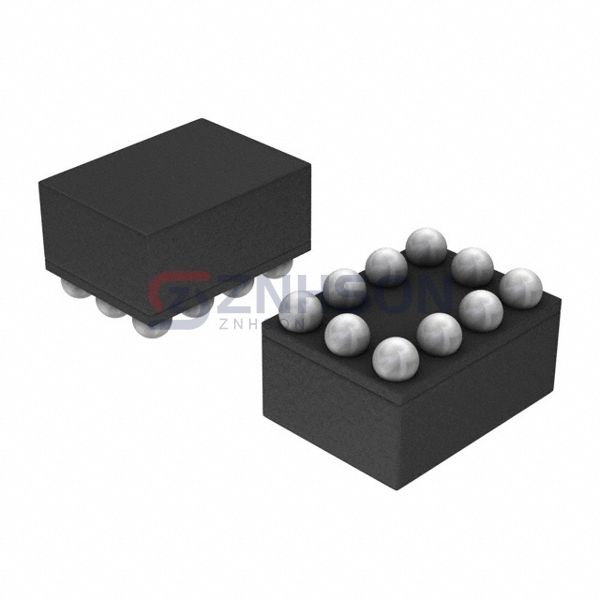

NLAS4717FCT1G
onsemi
onsemi
IC SWITCH DUAL SPDT 10FLIPCHIP
$0.43
Available to order
Reference Price (USD)
3,000+
$0.44700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NLAS4717FCT1G from onsemi's Analog Switch/Mux/Demux series revolutionizes signal routing with its integrated fault detection circuitry. This Interface IC automatically reports channel integrity issues while maintaining <100pA leakage at elevated temperatures. Its dual-supply architecture ( 5V to 20V) accommodates industrial process signals without additional level shifting. The NLAS4717FCT1G is extensively used in: semiconductor wafer probers, phased-array antenna controllers, electrophysiology lab equipment, and smart factory robotic arms. Its -60dB crosstalk performance at 10MHz makes it indispensable for high-speed data acquisition systems and spectrum analyzer front-ends.
Specifications
- Product Status: Obsolete
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 3.5Ohm
- Channel-to-Channel Matching (ΔRon): 100mOhm
- Voltage - Supply, Single (V+): 1.8V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 30ns, 40ns
- -3db Bandwidth: 40MHz
- Charge Injection: 9pC
- Channel Capacitance (CS(off), CD(off)): 30pF
- Current - Leakage (IS(off)) (Max): 1nA
- Crosstalk: -110dB @ 1MHz
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-UFBGA, FCBGA
- Supplier Device Package: 10-Microbump
