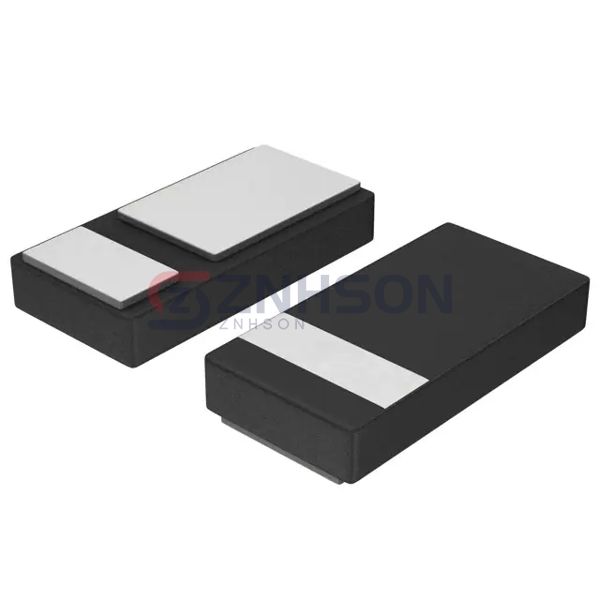

NSR20F20NXT5G
onsemi
onsemi
DIODE SCHOTTKY 20V 2A 2DSN
$0.65
Available to order
Reference Price (USD)
5,000+
$0.13330
10,000+
$0.12470
25,000+
$0.12040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NSR20F20NXT5G from onsemi is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. onsemi's dedication to quality means the NSR20F20NXT5G meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 2A (DC)
- Voltage - Forward (Vf) (Max) @ If: 470 mV @ 2 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 150 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: 2-XDFN
- Supplier Device Package: 2-DSN (1.6x.80)
- Operating Temperature - Junction: 150°C (Max)
