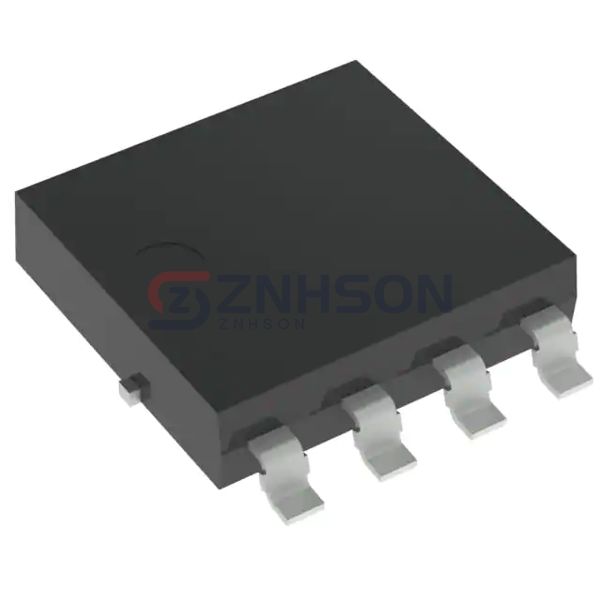

NTMJS0D9N04CTWG
onsemi
onsemi
MOSFET N-CH 40V 52A/342A 8LFPAK
$3.15
Available to order
Reference Price (USD)
1+
$3.14574
500+
$3.1142826
1000+
$3.0828252
1500+
$3.0513678
2000+
$3.0199104
2500+
$2.988453
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the NTMJS0D9N04CTWG by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the NTMJS0D9N04CTWG is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 52A (Ta), 342A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 0.81mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 117 nC @ 10 V
- Vgs (Max): 20V
- Input Capacitance (Ciss) (Max) @ Vds: 7400 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 4.2W (Ta), 180W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
