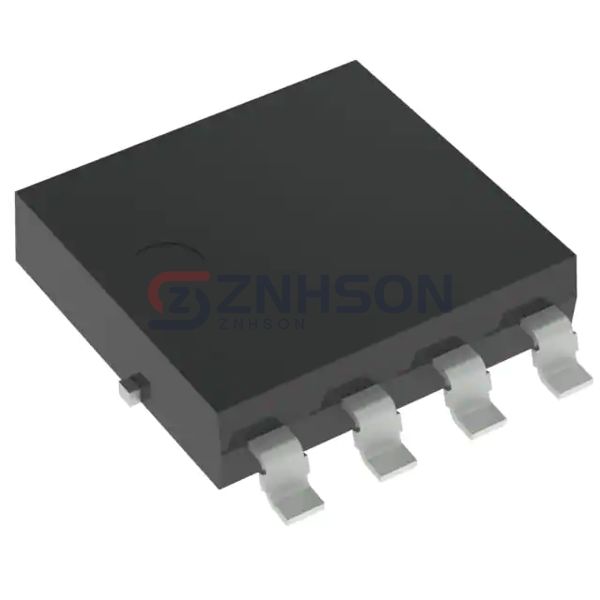

NTMJS1D15N03CGTWG
onsemi
onsemi
WIDE SOA
$2.76
Available to order
Reference Price (USD)
1+
$2.75500
500+
$2.72745
1000+
$2.6999
1500+
$2.67235
2000+
$2.6448
2500+
$2.61725
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NTMJS1D15N03CGTWG from onsemi, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the NTMJS1D15N03CGTWG ensures reliable performance in demanding environments. Upgrade your circuit designs with onsemi's cutting-edge technology today.
Specifications
- Product Status: Last Time Buy
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 45A (Ta), 257A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.15mOhm @ 20A, 10V
- Vgs(th) (Max) @ Id: 2.2V @ 160µA
- Gate Charge (Qg) (Max) @ Vgs: 94 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7300 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 125W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
