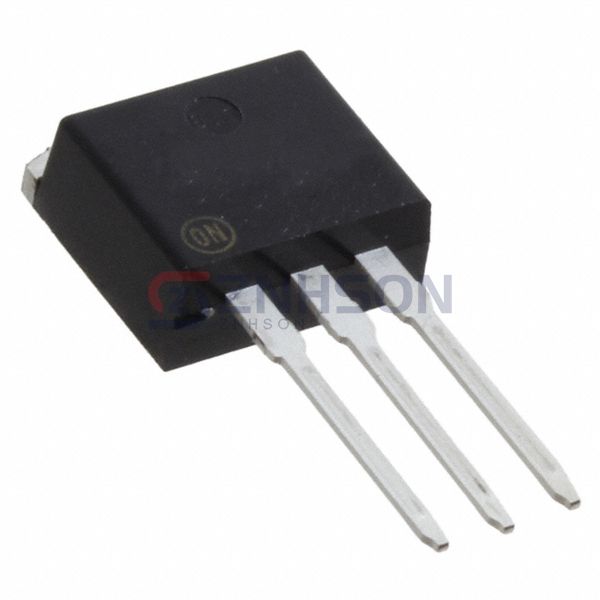

NTSB40120CT-1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 120V I2PAK
$1.92
Available to order
Reference Price (USD)
1+
$1.62000
50+
$1.37640
100+
$1.13070
500+
$0.93404
1,000+
$0.73740
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the NTSB40120CT-1G by onsemi represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With onsemi's patented junction design, the NTSB40120CT-1G achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 910 mV @ 20 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 500 µA @ 120 V
- Operating Temperature - Junction: -40°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
- Supplier Device Package: I2PAK (TO-262)
