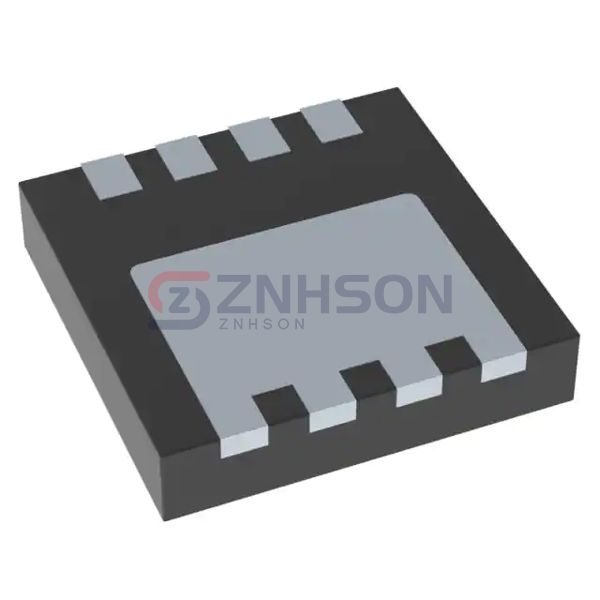

NTTFS5D9N08HTWG
onsemi
onsemi
MOSFET N-CH 80V 13A/84A 8PQFN
$2.27
Available to order
Reference Price (USD)
1+
$2.27000
500+
$2.2473
1000+
$2.2246
1500+
$2.2019
2000+
$2.1792
2500+
$2.1565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NTTFS5D9N08HTWG by onsemi is a standout in the Transistors - FETs, MOSFETs - Single segment, offering exceptional power handling and efficiency. Designed for precision and reliability, this MOSFET is widely used in audio amplifiers, DC-DC converters, and battery management systems. With advanced features like avalanche energy resistance and low leakage current, it's a top pick for professionals in the Discrete Semiconductor Products field. Choose onsemi for innovation you can depend on.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 13A (Ta), 84A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 6V, 10V
- Rds On (Max) @ Id, Vgs: 5.9mOhm @ 23A, 10V
- Vgs(th) (Max) @ Id: 4V @ 120µA
- Gate Charge (Qg) (Max) @ Vgs: 31 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2040 pF @ 40 V
- FET Feature: -
- Power Dissipation (Max): 2.7W (Ta), 100W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-PQFN (3.3x3.3)
- Package / Case: 8-PowerWDFN
