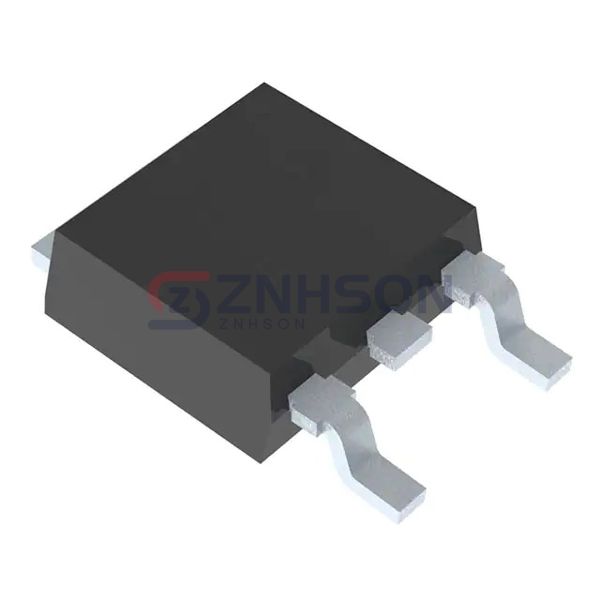

NVATS5A108PLZT4G
onsemi
onsemi
MOSFET P-CHANNEL 40V 77A ATPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$0.86590
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the NVATS5A108PLZT4G by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The NVATS5A108PLZT4G stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 77A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 10.4mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: 2.6V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 79.5 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 3850 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 72W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
