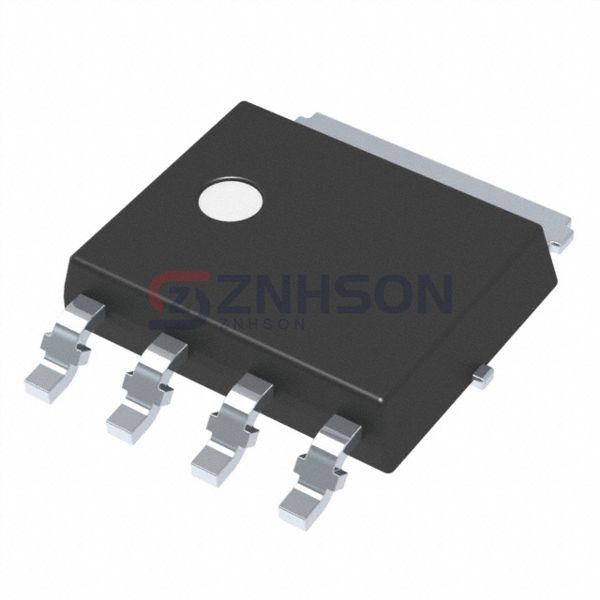

NVMYS1D3N04CTWG
onsemi
onsemi
TRENCH 6 40V SL NFET
$4.78
Available to order
Reference Price (USD)
3,000+
$1.06920
6,000+
$1.02960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMYS1D3N04CTWG single MOSFET from onsemi is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the NVMYS1D3N04CTWG is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 43A (Ta), 252A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.15mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 3.5V @ 180µA
- Gate Charge (Qg) (Max) @ Vgs: 75 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4855 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 3.9W (Ta), 134W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: LFPAK4 (5x6)
- Package / Case: SOT-1023, 4-LFPAK
