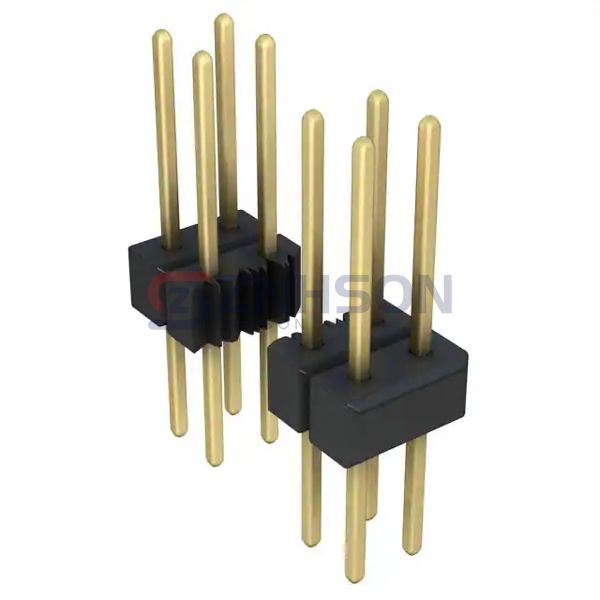

PBC21DFBN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 42POS 2.54MM
$3.89
Available to order
Reference Price (USD)
1+
$3.89000
10+
$3.73000
25+
$3.41880
50+
$3.26340
100+
$3.10800
250+
$2.71952
500+
$2.64180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PBC21DFBN by Sullins Connector Solutions is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the PBC21DFBN supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Sullins Connector Solutions ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 42
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.220" (5.58mm)
- Overall Contact Length: 0.638" (16.21mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
9-146250-0-39
Preci-Dip
890-80-039-20-001101
Amphenol ICC (FCI)
77317-417-06LF
Molex
0367570103
Hirose Electric Co Ltd
DF50-40DP-1V(52)
TE Connectivity AMP Connectors
5-103080-8
Preci-Dip

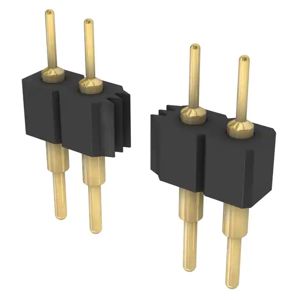

351-10-133-00-004101
Samtec Inc.

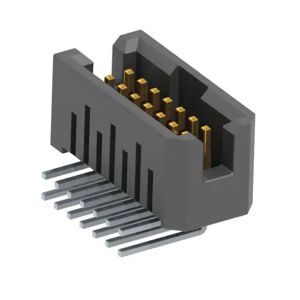

TFML-107-01-S-D-RA
Samtec Inc.

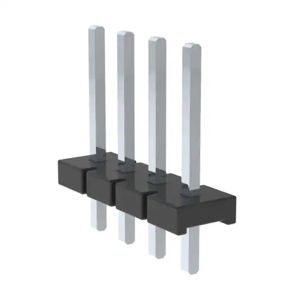

HPM-04-02-T-S
