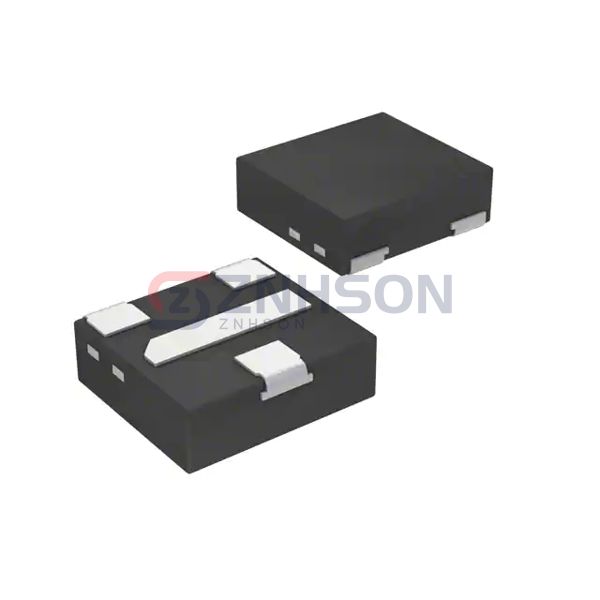

PDTC114EQCZ
Nexperia USA Inc.
Nexperia USA Inc.
PDTC114EQC/SOT8009/DFN1412D-3
$0.26
Available to order
Reference Price (USD)
1+
$0.26000
500+
$0.2574
1000+
$0.2548
1500+
$0.2522
2000+
$0.2496
2500+
$0.247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Nexperia USA Inc. presents the PDTC114EQCZ a game-changer in pre-biased transistor technology. The device's thermal shutdown protection and 5kV ESD rating make it perfect for harsh environments like oil/gas monitoring and agricultural machinery. Its 1.5V low saturation voltage enhances energy efficiency in portable electronics and wearables.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 100 mA
- Voltage - Collector Emitter Breakdown (Max): 50 V
- Resistor - Base (R1): 10 kOhms
- Resistor - Emitter Base (R2): 10 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 30 @ 5mA, 5V
- Vce Saturation (Max) @ Ib, Ic: 100mV @ 500µA, 10mA
- Current - Collector Cutoff (Max): 100nA
- Frequency - Transition: 230 MHz
- Power - Max: 360 mW
- Mounting Type: Surface Mount, Wettable Flank
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1412D-3
