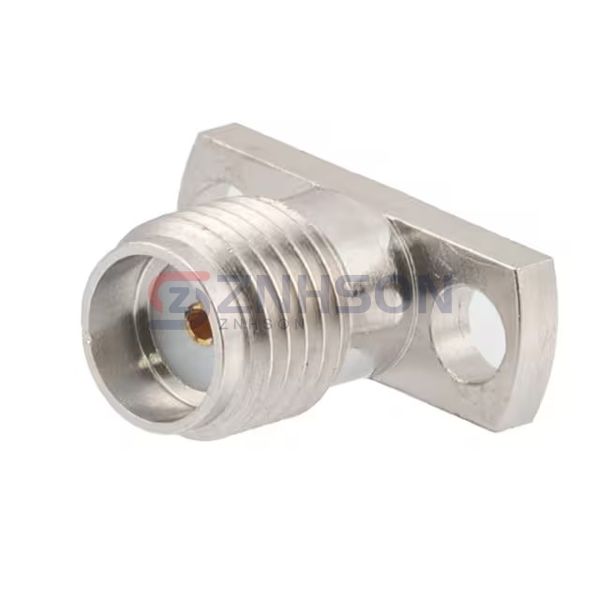

PE45576
Pasternack
Pasternack
SMA(F) FLD RPL 2HOLE 0.020" PIN
$28.59
Available to order
Reference Price (USD)
1+
$28.59000
500+
$28.3041
1000+
$28.0182
1500+
$27.7323
2000+
$27.4464
2500+
$27.1605
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PE45576 from Pasternack represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The PE45576 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMA
- Connector Type: Receptacle, Female Socket
- Contact Termination: Compression
- Shield Termination: Screw
- Impedance: 50Ohm
- Mounting Type: Panel Mount
- Mounting Feature: Flange
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 27 GHz
- Number of Ports: 1
- Features: Field Replaceable, For Hermetically Sealed Pin
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
