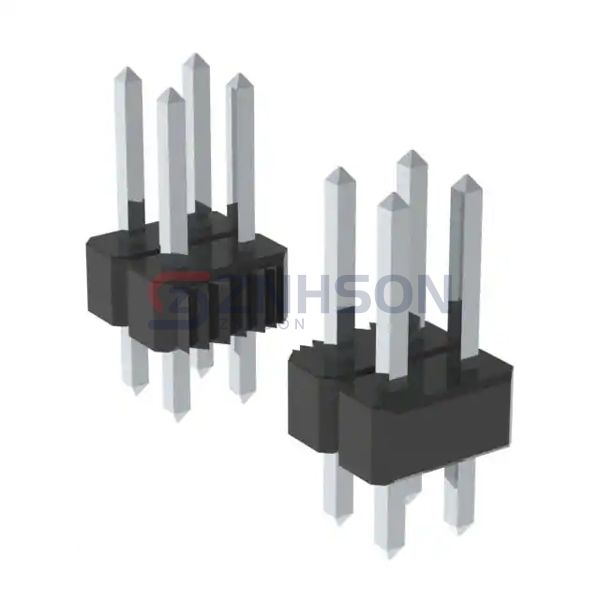

PEC10DAAN
Sullins Connector Solutions
Sullins Connector Solutions
CONN HEADER VERT 20POS 2.54MM
$0.91
Available to order
Reference Price (USD)
1+
$0.91000
10+
$0.79900
25+
$0.75200
50+
$0.72060
100+
$0.68930
250+
$0.62668
500+
$0.56400
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the PEC10DAAN rectangular connector header from Sullins Connector Solutions for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Sullins Connector Solutions is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Hirose Electric Co Ltd
DF3EA-15P-2H(51)
Preci-Dip
800-10-019-30-001101
HARTING
09185646924
Molex
39-30-6049
CNC Tech
3210-10-001-12-00
Samtec Inc.

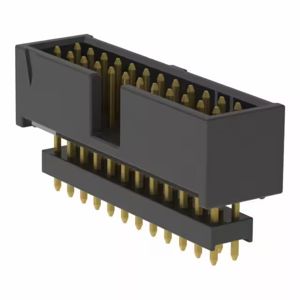

ZSS-112-01-G-D-515
Molex
90325-9004
Samtec Inc.

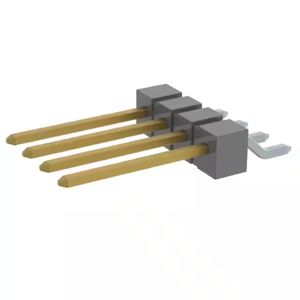

TSM-104-03-S-SH
Phoenix Contact

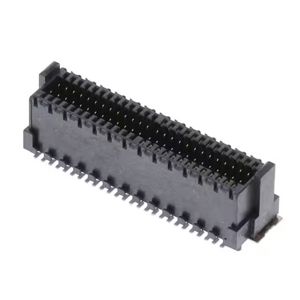

1061700
