PJF60R540E_T0_00001

Panjit International Inc.

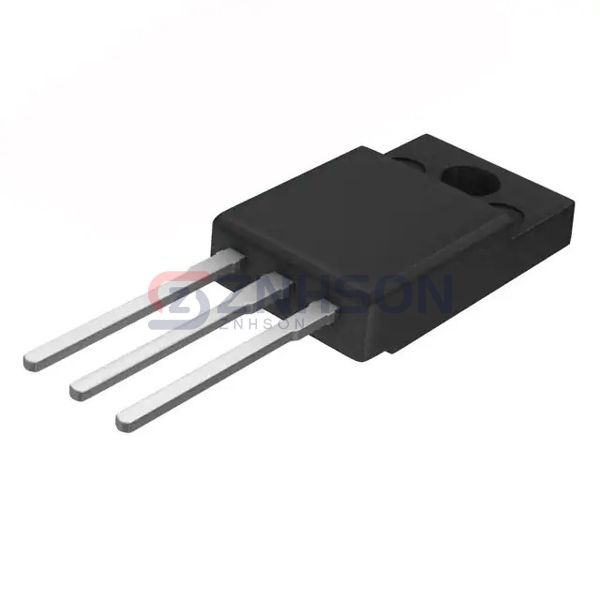

PJF60R540E_T0_00001 Preview
Panjit International Inc.
600V N-CHANNEL SUPER JUNCTION MO
$1.66
Available to order
Reference Price (USD)
1+
$1.66000
500+
$1.6434
1000+
$1.6268
1500+
$1.6102
2000+
$1.5936
2500+
$1.577
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600 V
  • Current - Continuous Drain (Id) @ 25°C: 1.3A (Ta), 9A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 535mOhm @ 2.8A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 23.7 nC @ 10 V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 531 pF @ 25 V
  • FET Feature: -
  • Power Dissipation (Max): 48W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: ITO-220AB
  • Package / Case: TO-220-3 Full Pack
