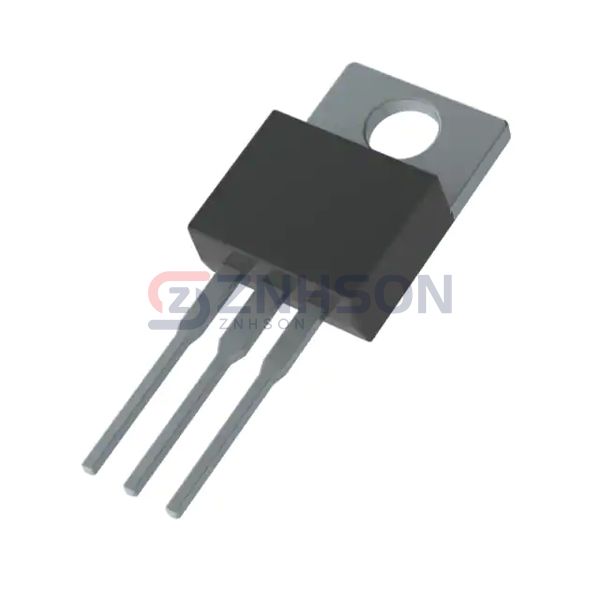

PJMF120N60EC_T0_00001
Panjit International Inc.
Panjit International Inc.
600V SUPER JUNCITON MOSFET
$7.23
Available to order
Reference Price (USD)
1+
$7.23000
500+
$7.1577
1000+
$7.0854
1500+
$7.0131
2000+
$6.9408
2500+
$6.8685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PJMF120N60EC_T0_00001 single MOSFET from Panjit International Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PJMF120N60EC_T0_00001 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 12A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 51 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1960 pF @ 400 V
- FET Feature: -
- Power Dissipation (Max): 33W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: ITO-220AB-F
- Package / Case: TO-220-3 Full Pack, Isolated Tab
