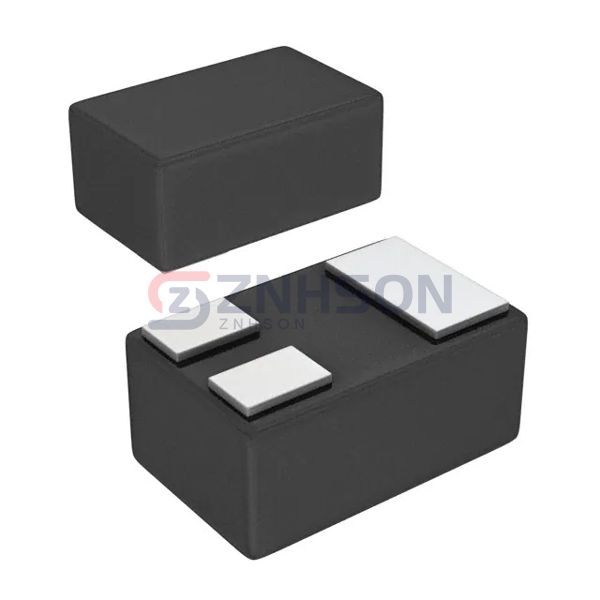

PJQ1902_R1_00001
Panjit International Inc.
Panjit International Inc.
30V N-CHANNEL ENHANCEMENT MODE M
$0.47
Available to order
Reference Price (USD)
1+
$0.47000
500+
$0.4653
1000+
$0.4606
1500+
$0.4559
2000+
$0.4512
2500+
$0.4465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the PJQ1902_R1_00001 by Panjit International Inc., a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the PJQ1902_R1_00001 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Not For New Designs
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 500mA (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 1.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 350mA, 4.5V
- Vgs(th) (Max) @ Id: 1.1V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 0.87 nC @ 4.5 V
- Vgs (Max): ±10V
- Input Capacitance (Ciss) (Max) @ Vds: 34 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 700mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 3-DFN (0.6x1)
- Package / Case: 3-UFDFN
