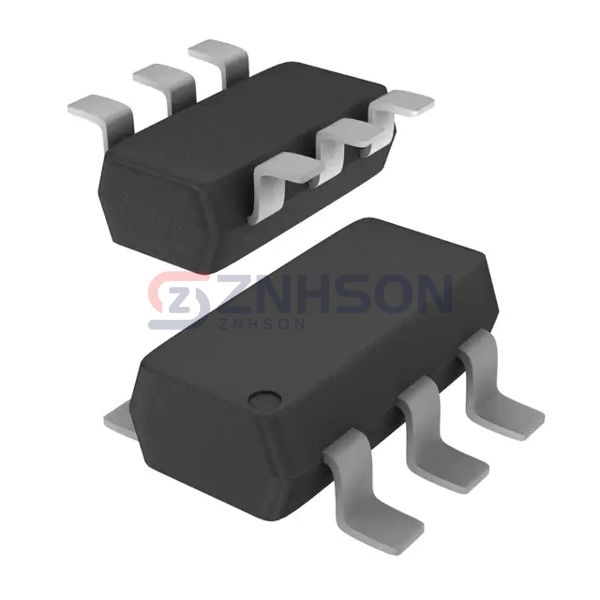

PMN23UN,165
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 20V 6.3A 6TSOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the PMN23UN,165 by NXP USA Inc., a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The PMN23UN,165 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose NXP USA Inc..
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 6.3A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 1.8V, 4.5V
- Rds On (Max) @ Id, Vgs: 28mOhm @ 2A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 1mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: 10.6 nC @ 4.5 V
- Vgs (Max): ±8V
- Input Capacitance (Ciss) (Max) @ Vds: 740 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.75W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SC-74
- Package / Case: SC-74, SOT-457
Related Products
STMicroelectronics
STP9NK70Z
onsemi
NVMFS6B03NT3G
onsemi
FQB17P06TM
onsemi
MCH6444-TL-W
Rohm Semiconductor
RSS070N05FU6TB
Infineon Technologies
IRFS7530PBF
Toshiba Semiconductor and Storage
TPCA8109(TE12L1,V
Vishay Siliconix

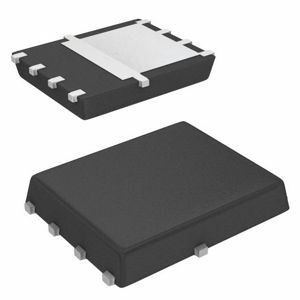

SI7790DP-T1-GE3
