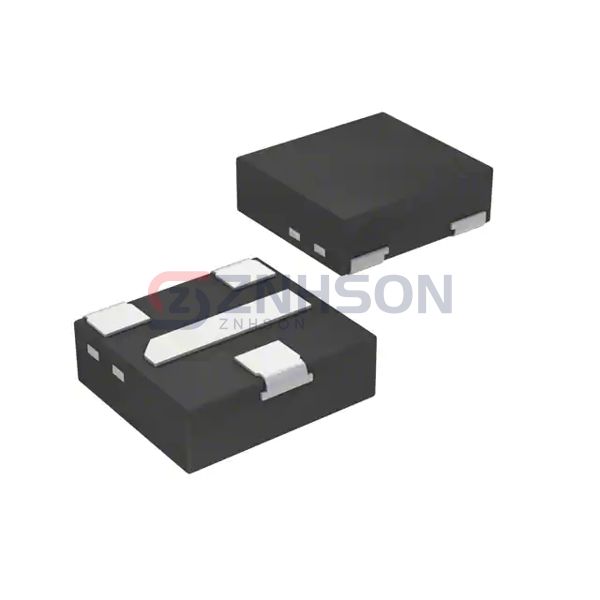

PMXB56ENZ
Nexperia USA Inc.
Nexperia USA Inc.
MOSFET N-CH 30V 3.2A DFN1010D-3
$0.51
Available to order
Reference Price (USD)
5,000+
$0.11660
10,000+
$0.10753
25,000+
$0.10148
50,000+
$0.09240
125,000+
$0.09075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PMXB56ENZ single MOSFET from Nexperia USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PMXB56ENZ is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 3.2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 55mOhm @ 3.2A, 10V
- Vgs(th) (Max) @ Id: 2V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 6.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 209 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 400mW (Ta), 8.33W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: DFN1010D-3
- Package / Case: 3-XDFN Exposed Pad
