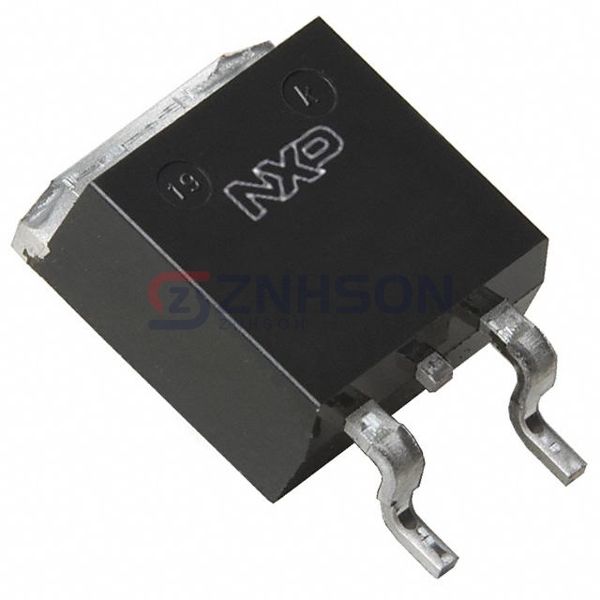

PSMN005-55B,118
NXP USA Inc.
NXP USA Inc.
MOSFET N-CH 55V 75A D2PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PSMN005-55B,118 single MOSFET from NXP USA Inc. is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the PSMN005-55B,118 is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 55 V
- Current - Continuous Drain (Id) @ 25°C: 75A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 5.8mOhm @ 25A, 10V
- Vgs(th) (Max) @ Id: 2V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 103 nC @ 5 V
- Vgs (Max): ±15V
- Input Capacitance (Ciss) (Max) @ Vds: 6500 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 230W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D2PAK
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
