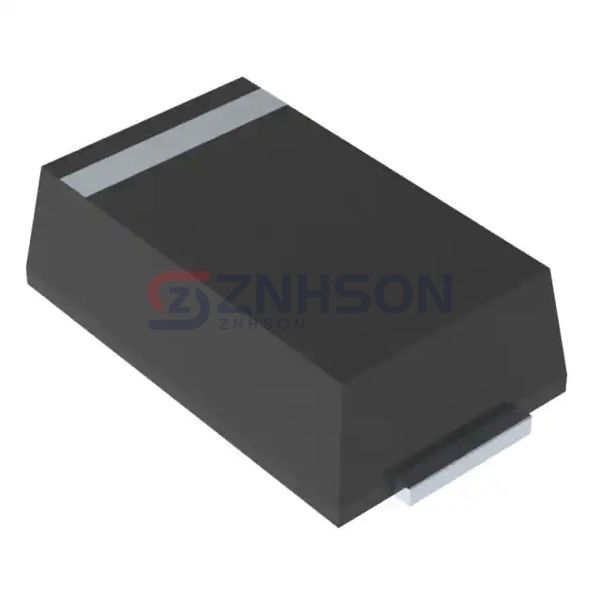

PTV36B-M3/84A
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ZENER 38V 600MW DO220AA
$0.13
Available to order
Reference Price (USD)
3,000+
$0.13141
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The PTV36B-M3/84A by Vishay General Semiconductor - Diodes Division is a high-performance single Zener diode, part of the Discrete Semiconductor Products lineup. Designed for accuracy and reliability, this diode features low dynamic impedance and excellent temperature stability. It is widely used in voltage reference circuits, power supplies, and signal conditioning applications. For instance, the PTV36B-M3/84A is essential in medical imaging devices, where it maintains precise voltage levels for accurate diagnostics. It also plays a critical role in aerospace electronics, ensuring reliable operation under extreme conditions. Furthermore, it is used in consumer electronics, such as smart TVs and home appliances, to enhance performance and longevity.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 38 V
- Tolerance: ±5%
- Power - Max: 600 mW
- Impedance (Max) (Zzt): 20 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 27 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 200 mA
- Operating Temperature: 150°C
- Mounting Type: Surface Mount
- Package / Case: DO-220AA
- Supplier Device Package: DO-220AA (SMP)
