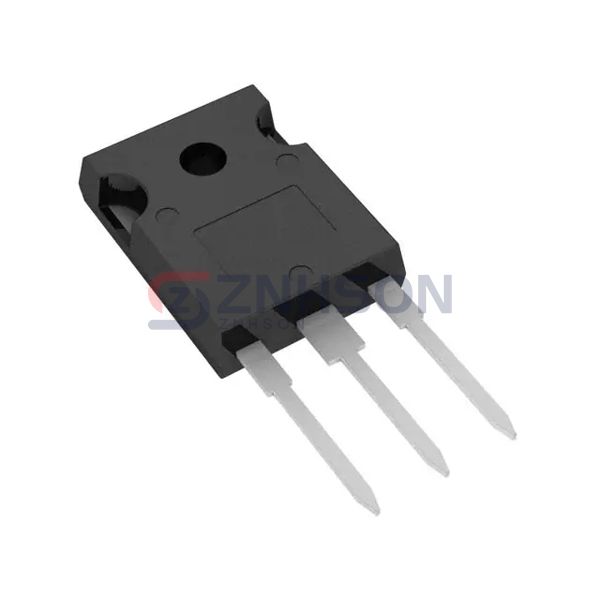

RGS80TSX2DHRC11
Rohm Semiconductor
Rohm Semiconductor
1200V 40A FIELD STOP TRENCH IGBT
$12.74
Available to order
Reference Price (USD)
1+
$12.74000
500+
$12.6126
1000+
$12.4852
1500+
$12.3578
2000+
$12.2304
2500+
$12.103
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic projects with the RGS80TSX2DHRC11 Single IGBT transistor from Rohm Semiconductor. This Discrete Semiconductor Product offers exceptional performance with low switching losses and high current capacity. Suitable for applications such as medical equipment, aerospace systems, and consumer electronics, the RGS80TSX2DHRC11 ensures precision and reliability. Rohm Semiconductor's cutting-edge technology guarantees a component that meets the highest industry standards. Choose RGS80TSX2DHRC11 for efficient and durable power solutions.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 40A
- Power - Max: 555 W
- Switching Energy: 3mJ (on), 3.1mJ (off)
- Input Type: Standard
- Gate Charge: 104 nC
- Td (on/off) @ 25°C: 49ns/199ns
- Test Condition: 600V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): 198 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247N
Related Products
onsemi
ISL9V2040D3STV
IXYS
IXYH8N250CHV
STMicroelectronics

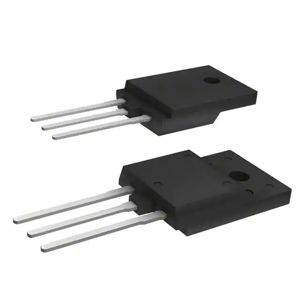

STGFW20H65FB
Alpha & Omega Semiconductor Inc.
AOTF10B65M2
Infineon Technologies

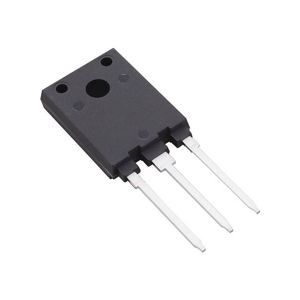

IKFW50N65ES5XKSA1
IXYS
IXYP24N100C4
Fairchild Semiconductor
SGU15N40LTU
Infineon Technologies
IRGR4045DTRPBF
Fairchild Semiconductor

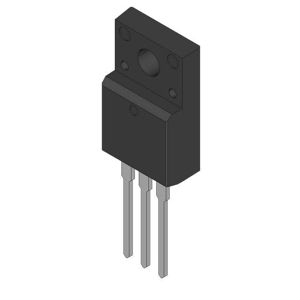

SGS10N60RUFTU
