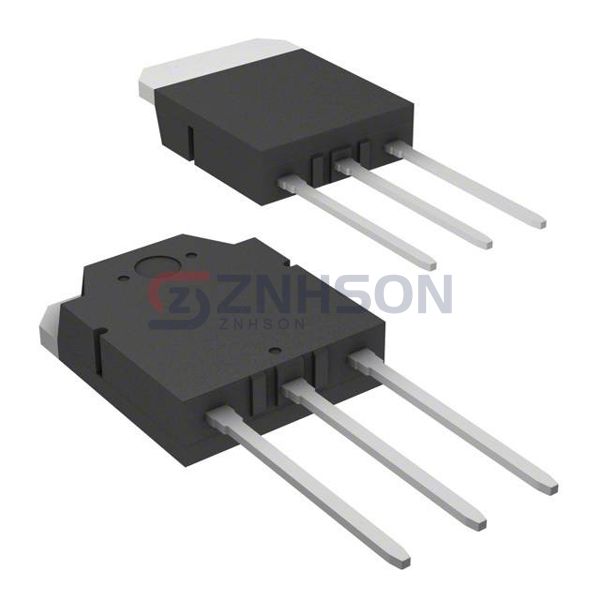

RJH1CV5DPK-00#T0
Renesas Electronics America Inc
Renesas Electronics America Inc
IGBT 1200V 50A 245W TO-3P
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RJH1CV5DPK-00#T0 Single IGBT transistor by Renesas Electronics America Inc is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The RJH1CV5DPK-00#T0 ensures precise power control and long-term stability. With Renesas Electronics America Inc's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate RJH1CV5DPK-00#T0 into your projects for superior results.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 50 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 25A
- Power - Max: 245 W
- Switching Energy: 1.9mJ (on), 1.5mJ (off)
- Input Type: Standard
- Gate Charge: 72 nC
- Td (on/off) @ 25°C: 42ns/105ns
- Test Condition: 600V, 25A, 5Ohm, 15V
- Reverse Recovery Time (trr): 170 ns
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-3P
