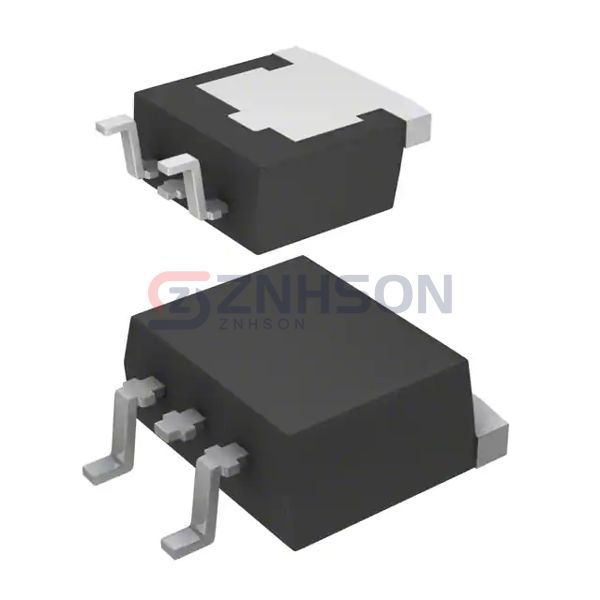

RJH60A85RDPE-00#J3
Renesas Electronics America Inc
Renesas Electronics America Inc
IGBT 600V 30A 113W LDPAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the RJH60A85RDPE-00#J3 Single IGBT transistor by Renesas Electronics America Inc, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the RJH60A85RDPE-00#J3 ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the RJH60A85RDPE-00#J3 for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): -
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 15A
- Power - Max: 113 W
- Switching Energy: 430µJ (on), 300µJ (off)
- Input Type: Standard
- Gate Charge: 56 nC
- Td (on/off) @ 25°C: 40ns/86ns
- Test Condition: 300V, 15A, 5Ohm, 15V
- Reverse Recovery Time (trr): 160 ns
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SC-83
- Supplier Device Package: LDPAK
Related Products
Microsemi Corporation
APT30GT60KRG
IXYS
IXGH28N120BD1
IXYS
IXGH20N120IH
Infineon Technologies
IRG4RC10UD
onsemi
HGT1S20N60C3S9A
IXYS
IXSH35N140A
Infineon Technologies
IRG4IBC30WPBF
Renesas Electronics America Inc

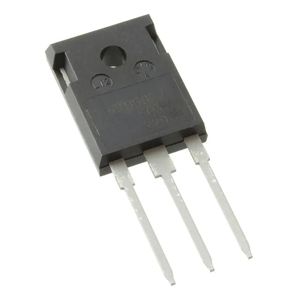

RJH60T04DPQ-A0#T0
