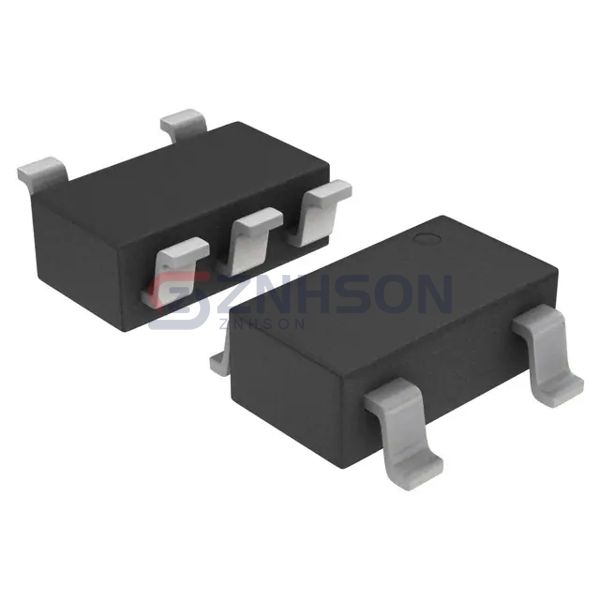

SBE805-TL-W
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V 5CPH
$0.92
Available to order
Reference Price (USD)
3,000+
$0.20156
6,000+
$0.18927
15,000+
$0.18312
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SBE805-TL-W rectifier array from onsemi redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. onsemi's precision manufacturing ensures each SBE805-TL-W meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 500mA
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 10 ns
- Current - Reverse Leakage @ Vr: 30 µA @ 15 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-74A, SOT-753
- Supplier Device Package: 5-CPH
