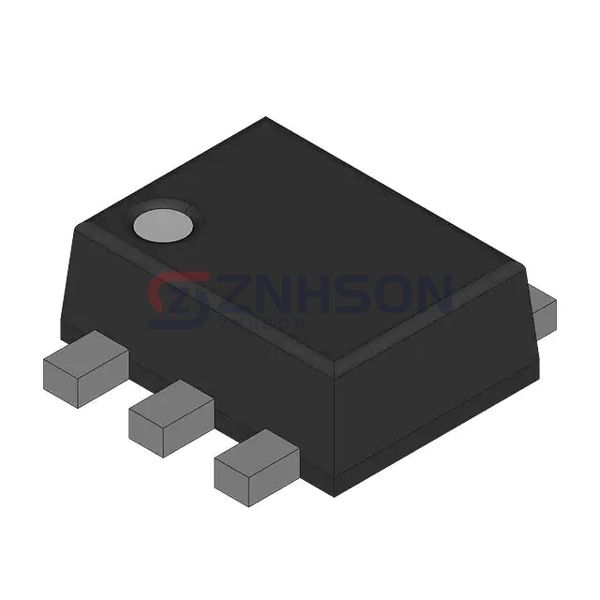

SCH1302-TL-E
onsemi
onsemi
MOSFET P-CH 20V 2A 6SCH
$0.09
Available to order
Reference Price (USD)
1+
$0.09000
500+
$0.0891
1000+
$0.0882
1500+
$0.0873
2000+
$0.0864
2500+
$0.0855
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the SCH1302-TL-E by onsemi, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the SCH1302-TL-E is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): -
- Rds On (Max) @ Id, Vgs: 165mOhm @ 1A, 4V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 10 nC @ 10 V
- Vgs (Max): -
- Input Capacitance (Ciss) (Max) @ Vds: 410 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 800mW (Ta)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 6-SCH
- Package / Case: 6-SMD, Flat Leads
