SD630CS_L2_00001
Panjit International Inc.
Panjit International Inc.
SURFACE MOUNT SCHOTTKY BARRIER R
$0.85
Available to order
Reference Price (USD)
1+
$0.85000
500+
$0.8415
1000+
$0.833
1500+
$0.8245
2000+
$0.816
2500+
$0.8075
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the SD630CS_L2_00001 by Panjit International Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Panjit International Inc.'s patented junction design, the SD630CS_L2_00001 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 6A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 200 µA @ 30 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: TO-252
Related Products
SMC Diode Solutions
SDURF1530CTR
Panjit International Inc.
ER1603CT_T0_00001
SMC Diode Solutions
6CWQ03FN
Panjit International Inc.
SB1020FCT_T0_00001
Diotec Semiconductor
BAV756DW
SMC Diode Solutions
MBRD1545CTL

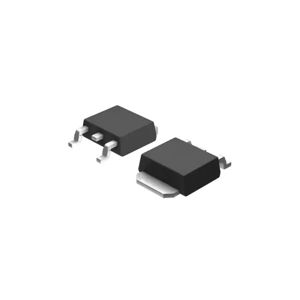

Rohm Semiconductor
RB098BGE150TL
Panjit International Inc.
BAV99S_R1_00001

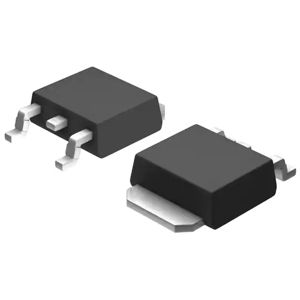

Rohm Semiconductor
RBQ20BM65AFHTL

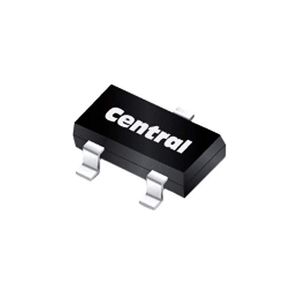

Central Semiconductor Corp
