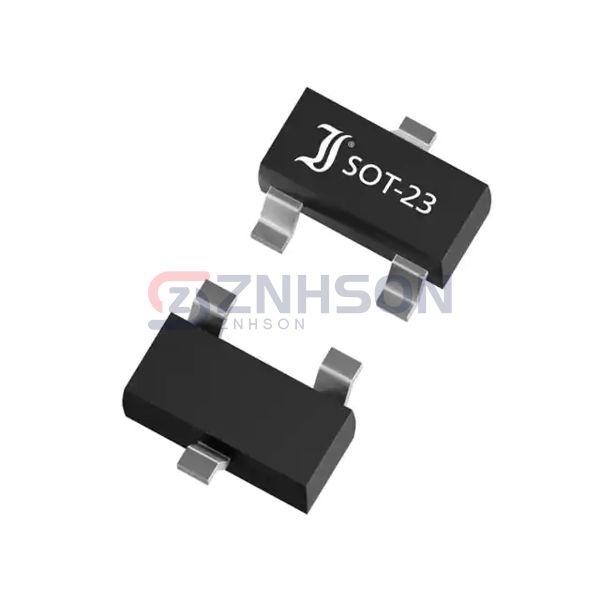

SDM0520S
Diotec Semiconductor
Diotec Semiconductor
SchottkyD, 20V, 0.5A
$0.78
Available to order
Reference Price (USD)
1+
$0.78033
500+
$0.7725267
1000+
$0.7647234
1500+
$0.7569201
2000+
$0.7491168
2500+
$0.7413135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SDM0520S from Diotec Semiconductor is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Diotec Semiconductor's SDM0520S for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io) (per Diode): 500mA
- Voltage - Forward (Vf) (Max) @ If: 460 mV @ 500 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 300 µA @ 20 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
