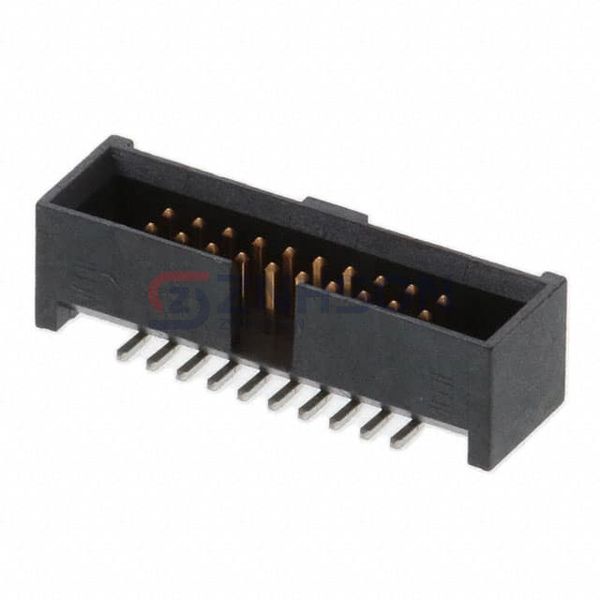

SHF-110-01-L-D-SM-TR
Samtec Inc.
Samtec Inc.
CONN HEADER SMD 20POS 1.27MM
$5.28
Available to order
Reference Price (USD)
1+
$5.28000
500+
$5.2272
1000+
$5.1744
1500+
$5.1216
2000+
$5.0688
2500+
$5.016
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SHF-110-01-L-D-SM-TR by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the SHF-110-01-L-D-SM-TR supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.210" (5.33mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
HARTING
15120202601000
Preci-Dip
350-10-138-00-001101
Phoenix Contact
1043757
Preci-Dip
351-80-120-00-004101
Samtec Inc.
TSM-114-02-S-SV
Samtec Inc.
HTSW-110-21-S-S
Amphenol ICC (FCI)
93690-105-30LF

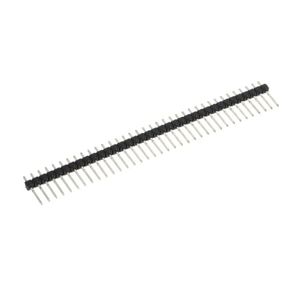

Molex
