SKW15N120FKSA1
Infineon Technologies
Infineon Technologies

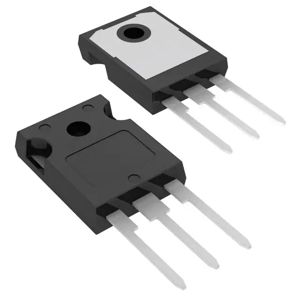

IGBT 1200V 30A 198W TO247-3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SKW15N120FKSA1 Single IGBT transistor by Infineon Technologies is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the SKW15N120FKSA1 provides consistent performance in varied conditions. Rely on Infineon Technologies's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 30 A
- Current - Collector Pulsed (Icm): 52 A
- Vce(on) (Max) @ Vge, Ic: 3.6V @ 15V, 15A
- Power - Max: 198 W
- Switching Energy: 1.9mJ
- Input Type: Standard
- Gate Charge: 130 nC
- Td (on/off) @ 25°C: 18ns/580ns
- Test Condition: 800V, 15A, 33Ohm, 15V
- Reverse Recovery Time (trr): 65 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3-1
