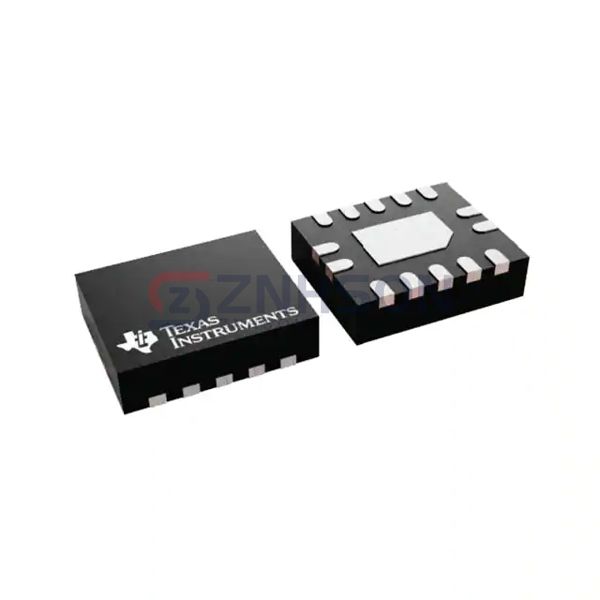

SN74HCS14BQAR
Texas Instruments
Texas Instruments
HEX INVERTER WITH SCHMITT-TRIGGE
$0.58
Available to order
Reference Price (USD)
1+
$0.58000
500+
$0.5742
1000+
$0.5684
1500+
$0.5626
2000+
$0.5568
2500+
$0.551
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Texas Instruments's SN74HCS14BQAR exemplifies innovation in Logic - Gates and Inverters technology. This high-speed CMOS logic IC combines multiple gate functions with exceptional noise margin characteristics. The device's wide operating voltage range (2V to 6V) accommodates diverse design requirements while maintaining consistent performance. Common uses include signal conditioning in medical devices, encoding/decoding circuits in security systems, and interface logic in automotive electronics. The SN74HCS14BQAR is particularly valuable in applications requiring precise timing control, such as industrial timers, digital clocks, and microcontroller reset circuits. Its industry-standard package options ensure easy PCB layout and manufacturing compatibility.
Specifications
- Product Status: Active
- Logic Type: Inverter
- Number of Circuits: 6
- Number of Inputs: 1
- Features: Schmitt Trigger Input
- Voltage - Supply: 2V ~ 6V
- Current - Quiescent (Max): 2 µA
- Current - Output High, Low: 7.8mA, 7.8mA
- Logic Level - Low: 1V ~ 3V
- Logic Level - High: 1.5V ~ 4.2V
- Max Propagation Delay @ V, Max CL: 16ns @ 6V, 50pF
- Operating Temperature: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Supplier Device Package: 14-WQFN (3x2.5)
- Package / Case: 14-QFN Exposed Pad
