SN74LS20N
Texas Instruments
Texas Instruments

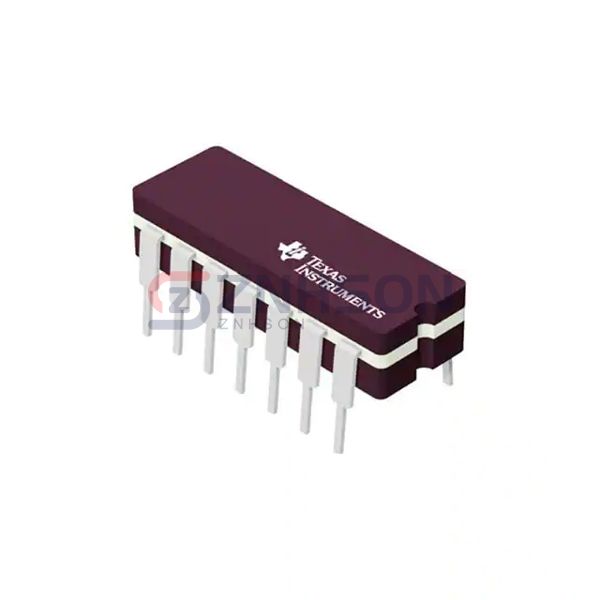

IC GATE NAND 2CH 4-INP 14DIP
$1.20
Available to order
Reference Price (USD)
1+
$0.98000
10+
$0.87900
25+
$0.83440
100+
$0.68540
500+
$0.56620
1,000+
$0.44700
2,500+
$0.41720
5,000+
$0.39634
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SN74LS20N from Texas Instruments is a high-performance logic gate IC designed for precision digital circuit applications. As part of our comprehensive Logic - Gates and Inverters collection, this integrated circuit offers reliable signal processing with minimal power consumption. These semiconductor devices feature advanced CMOS technology, providing excellent noise immunity and fast propagation delays. Commonly used in microcontroller interfaces, data transmission systems, and embedded devices, the SN74LS20N is ideal for applications such as industrial automation control panels, automotive electronics, and consumer digital products. Engineers trust Texas Instruments's logic ICs for their consistent quality and compatibility with various voltage levels from 1.8V to 5V.
Specifications
- Product Status: Active
- Logic Type: NAND Gate
- Number of Circuits: 2
- Number of Inputs: 4
- Features: -
- Voltage - Supply: 4.75V ~ 5.25V
- Current - Quiescent (Max): 800 µA
- Current - Output High, Low: 400µA, 8mA
- Logic Level - Low: 0.8V
- Logic Level - High: 2V
- Max Propagation Delay @ V, Max CL: 15ns @ 5V, 15pF
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole
- Supplier Device Package: 14-PDIP
- Package / Case: 14-DIP (0.300", 7.62mm)
