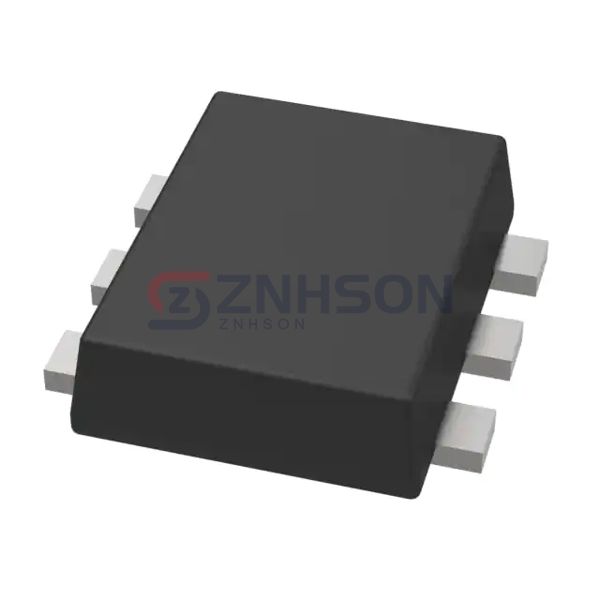

SSM6K809R,LXHF
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
AUTO AEC-Q SS MOS N-CH LOGIC-LEV
$0.72
Available to order
Reference Price (USD)
1+
$0.72000
500+
$0.7128
1000+
$0.7056
1500+
$0.6984
2000+
$0.6912
2500+
$0.684
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SSM6K809R,LXHF single MOSFET from Toshiba Semiconductor and Storage is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the SSM6K809R,LXHF is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 60 V
- Current - Continuous Drain (Id) @ 25°C: 6A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4V, 10V
- Rds On (Max) @ Id, Vgs: 36mOhm @ 5A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 9.3 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 550 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 1.5W (Ta)
- Operating Temperature: 175°C
- Mounting Type: Surface Mount
- Supplier Device Package: 6-TSOP-F
- Package / Case: 6-SMD, Flat Leads
