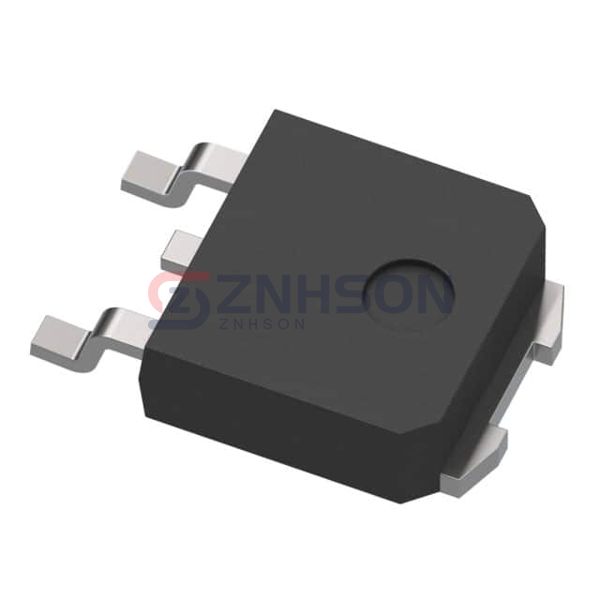

STD100N10LF7AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 100V 80A DPAK
$0.00
Available to order
Reference Price (USD)
2,500+
$1.34000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STD100N10LF7AG by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STD100N10LF7AG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 9mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 2.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 73 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 125W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D-PAK (TO-252)
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
