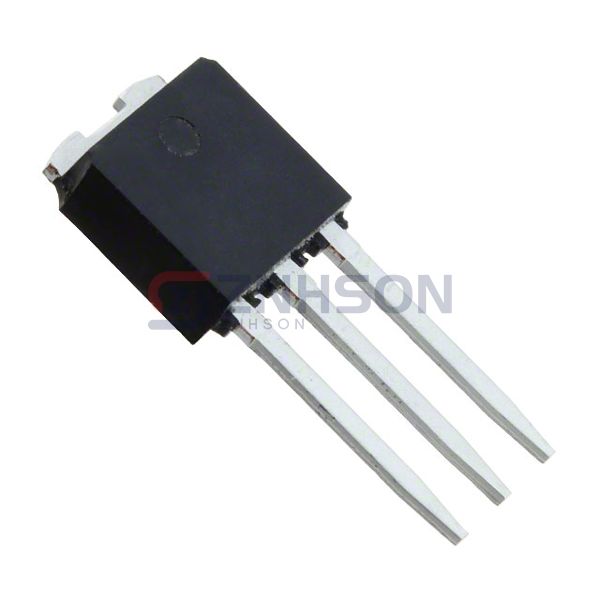

STD1NK80Z-1
STMicroelectronics
STMicroelectronics
MOSFET N-CH 800V 1A IPAK
$0.00
Available to order
Reference Price (USD)
1+
$1.29000
75+
$1.03493
150+
$0.90553
525+
$0.70225
1,050+
$0.55440
2,550+
$0.51744
5,025+
$0.49157
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the STD1NK80Z-1 by STMicroelectronics, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the STD1NK80Z-1 is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 800 V
- Current - Continuous Drain (Id) @ 25°C: 1A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 16Ohm @ 500mA, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 50µA
- Gate Charge (Qg) (Max) @ Vgs: 7.7 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 160 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 45W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-251 (IPAK)
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
Related Products
onsemi
NTD4302T4
Infineon Technologies
IRF1018ESLPBF
Vishay Siliconix
SIB404DK-T1-GE3
Diodes Incorporated
ZVP4105ASTOB
Infineon Technologies
SPP80N10L
onsemi
IRL530A
Rohm Semiconductor
RT1A045APTCR
Alpha & Omega Semiconductor Inc.
AON7422E
NXP USA Inc.

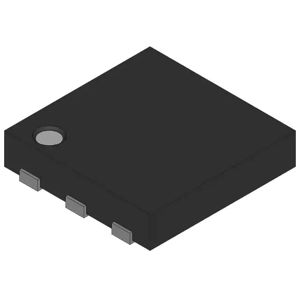

PMPB40SNA115
