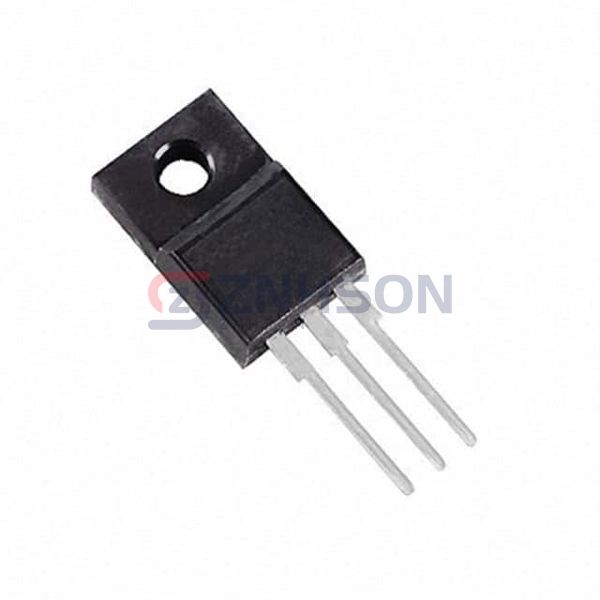

STF22NM60N
STMicroelectronics
STMicroelectronics
MOSFET N-CH 600V 16A TO220FP
$7.18
Available to order
Reference Price (USD)
1,000+
$3.47732
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STF22NM60N by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STF22NM60N is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600 V
- Current - Continuous Drain (Id) @ 25°C: 16A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 220mOhm @ 8A, 10V
- Vgs(th) (Max) @ Id: 4V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 44 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 30W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220FP
- Package / Case: TO-220-3 Full Pack
