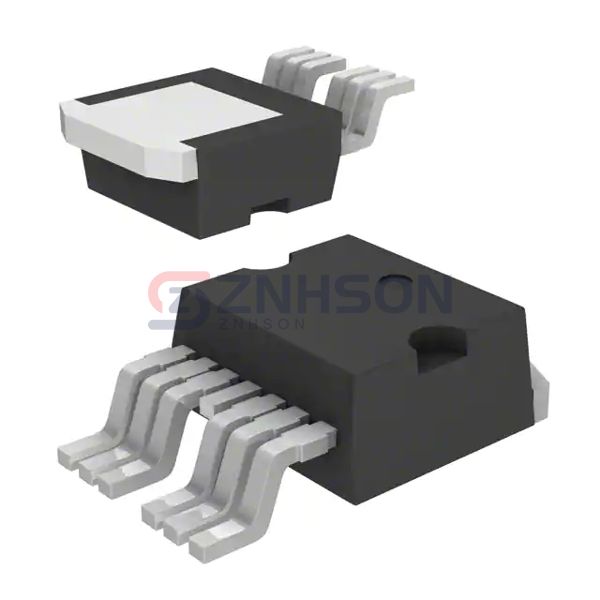

STH315N10F7-6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 100V 180A H2PAK-6
$6.39
Available to order
Reference Price (USD)
1,000+
$3.56034
2,000+
$3.40188
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STH315N10F7-6 from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STH315N10F7-6 for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 180A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.3mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 180 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 12800 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 315W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2PAK-6
- Package / Case: TO-263-7, D²Pak (6 Leads + Tab)
