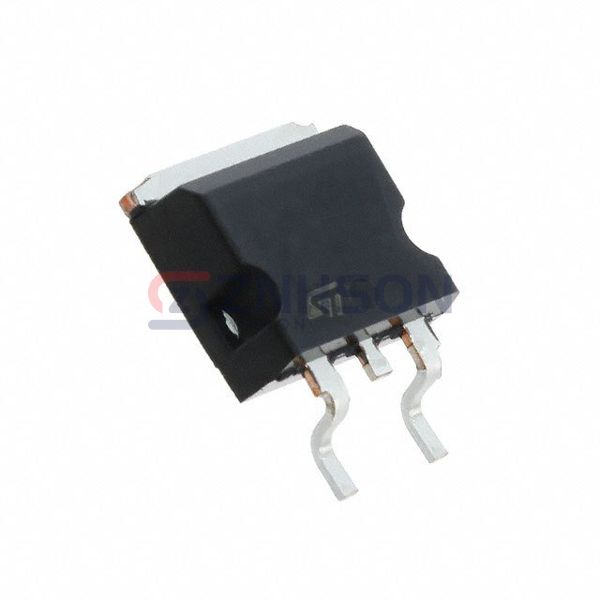

STGB10NB37LZ
STMicroelectronics
STMicroelectronics
IGBT 440V 20A 125W D2PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGB10NB37LZ Single IGBT transistor by STMicroelectronics is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the STGB10NB37LZ provides consistent performance in varied conditions. Rely on STMicroelectronics's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 440 V
- Current - Collector (Ic) (Max): 20 A
- Current - Collector Pulsed (Icm): 40 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 4.5V, 10A
- Power - Max: 125 W
- Switching Energy: 2.4mJ (on), 5mJ (off)
- Input Type: Standard
- Gate Charge: 28 nC
- Td (on/off) @ 25°C: 1.3µs/8µs
- Test Condition: 328V, 10A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
