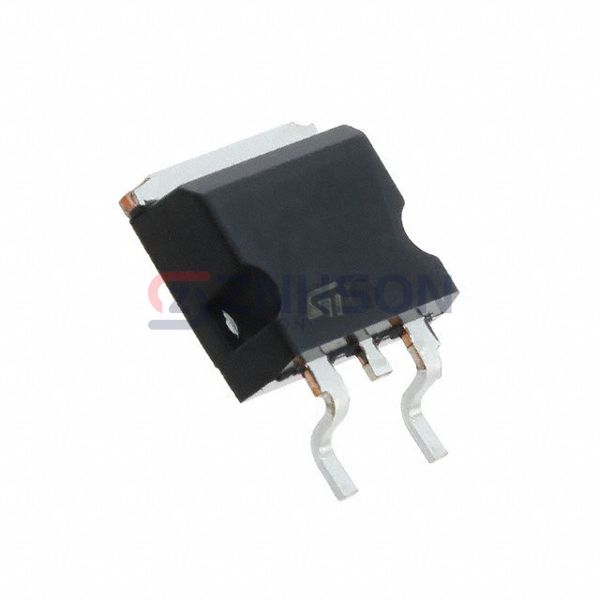

STGB10NB60ST4
STMicroelectronics
STMicroelectronics
IGBT 600V 29A 80W D2PAK
$0.00
Available to order
Reference Price (USD)
2,000+
$0.70560
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the STGB10NB60ST4 Single IGBT transistor from STMicroelectronics. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the STGB10NB60ST4 delivers consistent and reliable operation. Trust STMicroelectronics's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 29 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 1.75V @ 15V, 10A
- Power - Max: 80 W
- Switching Energy: 600µJ (on), 5mJ (off)
- Input Type: Standard
- Gate Charge: 33 nC
- Td (on/off) @ 25°C: 700ns/1.2µs
- Test Condition: 480V, 10A, 1kOhm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
