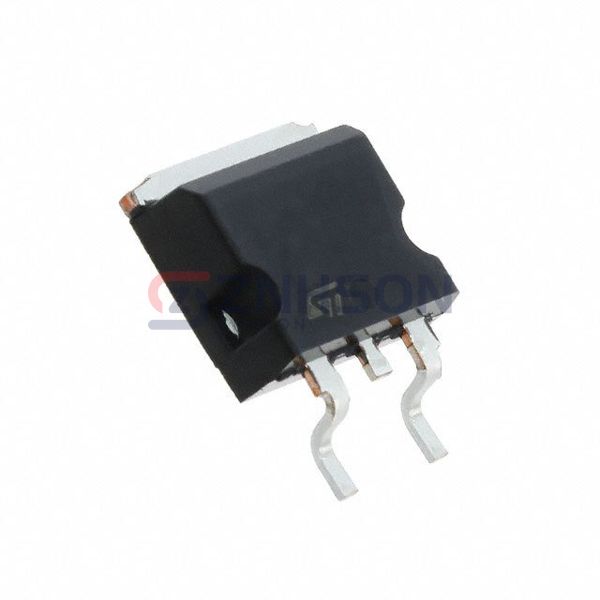

STGB30V60F
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP IGBT, V S
$0.00
Available to order
Reference Price (USD)
1,000+
$1.69575
2,000+
$1.59125
5,000+
$1.53900
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power management systems with the STGB30V60F Single IGBT transistor from STMicroelectronics. This Discrete Semiconductor Product boasts high current density and excellent thermal conductivity, making it suitable for high-power applications. From railway systems to wind turbines, the STGB30V60F provides reliable and efficient operation. STMicroelectronics's advanced semiconductor technology guarantees a component that excels in performance and durability. Choose STGB30V60F for your critical power needs.
Specifications
- Product Status: Obsolete
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 30A
- Power - Max: 260 W
- Switching Energy: 383µJ (on), 233µJ (off)
- Input Type: Standard
- Gate Charge: 163 nC
- Td (on/off) @ 25°C: 45ns/189ns
- Test Condition: 400V, 30A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: D²PAK (TO-263)
Related Products
onsemi

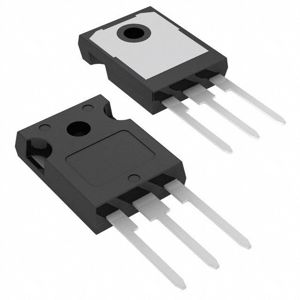

HGTG20N60A4
Infineon Technologies
IRGS4064DPBF
Infineon Technologies
IRGB6B60KDPBF
STMicroelectronics
STGB12NB60KDT4
Renesas Electronics America Inc

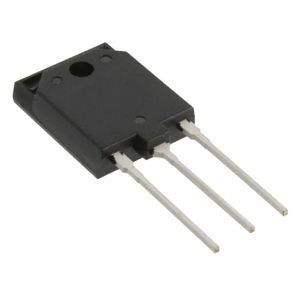

RJP60D0DPM-00#T1
