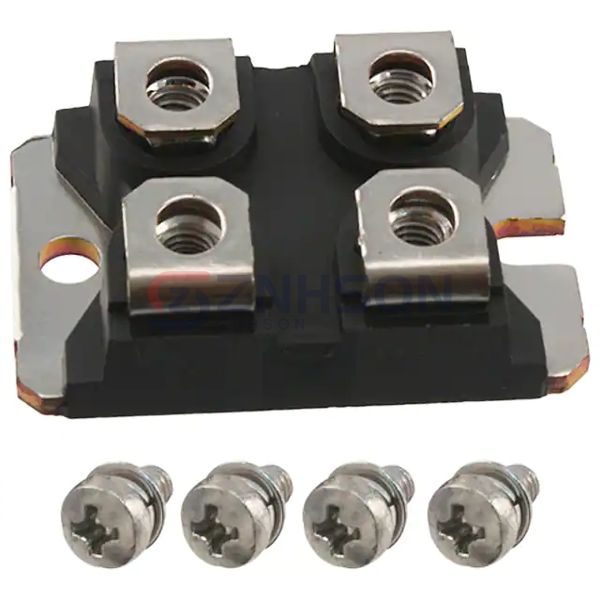

STGE50NC60WD
STMicroelectronics
STMicroelectronics
IGBT MOD 600V 100A 260W ISOTOP
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-generation power control with STMicroelectronics's STGE50NC60WD IGBT module. As a leader in Discrete Semiconductor Products, this transistor module features state-of-the-art trench gate technology and advanced carrier lifetime control. The STGE50NC60WD offers: symmetrical blocking capability, low switching losses, and excellent cosmic ray robustness. Target applications include electric bus charging infrastructure, industrial plasma generators, and high-power laser drivers. Implement the STGE50NC60WD in your next-generation HVDC systems or particle accelerator power supplies. STMicroelectronics delivers reliability where it matters most with the STGE50NC60WD IGBT module.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Configuration: Single
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 100 A
- Power - Max: 260 W
- Vce(on) (Max) @ Vge, Ic: 2.6V @ 15V, 40A
- Current - Collector Cutoff (Max): 500 µA
- Input Capacitance (Cies) @ Vce: 4.7 nF @ 25 V
- Input: Standard
- NTC Thermistor: No
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: ISOTOP
Related Products
Microchip Technology
APT50GT120JRDQ2
Infineon Technologies
FF1200R12KE3NOSA1
Powerex Inc.
CM225DX-24S1
Infineon Technologies
6PS18012E4FG42192NWSA1
Infineon Technologies

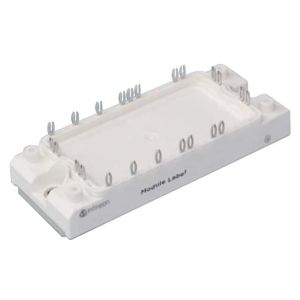

FS50R07N2E4BOSA1
Powerex Inc.

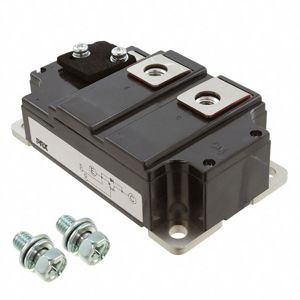

CM600HU-12F
Powerex Inc.

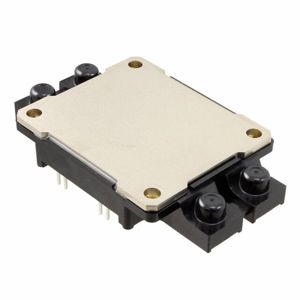

CM150EXS-24S
