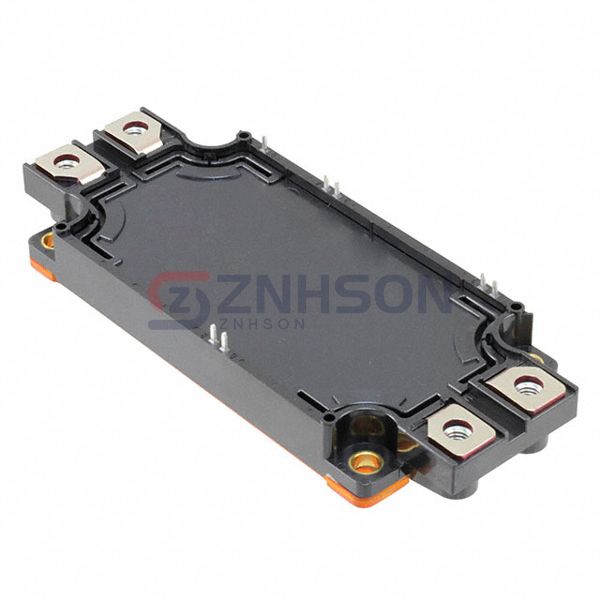

CM225DX-24S1
Powerex Inc.
Powerex Inc.
IGBT MOD 1200V 225A 1250W
$0.00
Available to order
Reference Price (USD)
1+
$96.31000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Powerex Inc.'s CM225DX-24S1 sets the benchmark for IGBT modules in the Transistors - IGBTs - Modules sector. This discrete semiconductor product features revolutionary reverse-conducting technology and dual-side cooling capability. The module's competitive advantages include: 50% higher power cycling capability, RoHS-compliant materials, and vibration-resistant construction. It's ideally suited for hybrid electric vehicles, smart grid applications, and high-power RF amplifiers. Implement the CM225DX-24S1 in your traction inverters or high-energy physics experiments for unparalleled performance. Trust Powerex Inc. to deliver cutting-edge IGBT solutions with the CM225DX-24S1 power module.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: -
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 225 A
- Power - Max: 1250 W
- Vce(on) (Max) @ Vge, Ic: 2.35V @ 15V, 225A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 20 nF @ 10 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: -
- Package / Case: Module
- Supplier Device Package: Module
