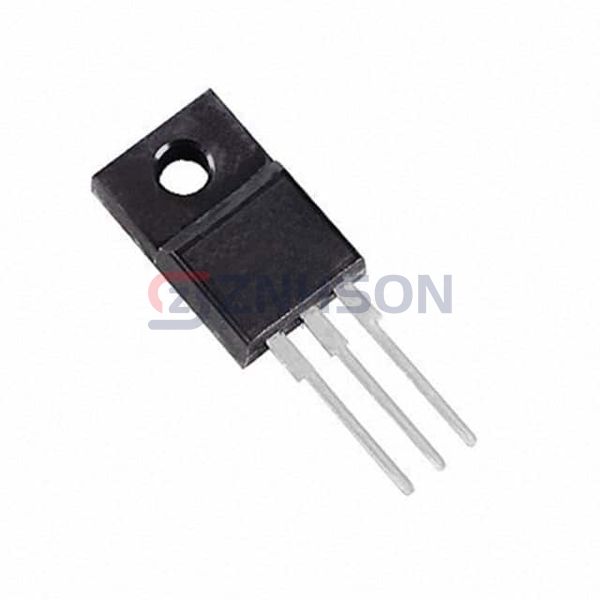

STGF30NC60S
STMicroelectronics
STMicroelectronics
IGBT 600V 22A 40W TO220FP
$0.00
Available to order
Reference Price (USD)
1,000+
$1.43876
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGF30NC60S Single IGBT transistor by STMicroelectronics is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The STGF30NC60S ensures precise power control and long-term stability. With STMicroelectronics's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate STGF30NC60S into your projects for superior results.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 22 A
- Current - Collector Pulsed (Icm): 150 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 20A
- Power - Max: 40 W
- Switching Energy: 300µJ (on), 1.28mJ (off)
- Input Type: Standard
- Gate Charge: 96 nC
- Td (on/off) @ 25°C: 21.5ns/180ns
- Test Condition: 480V, 20A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FP
