STGP20NC60V
STMicroelectronics
STMicroelectronics
IGBT 600V 60A 200W TO220
$3.66
Available to order
Reference Price (USD)
1,000+
$1.67825
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGP20NC60V Single IGBT transistor by STMicroelectronics is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The STGP20NC60V ensures precise power control and long-term stability. With STMicroelectronics's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate STGP20NC60V into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 60 A
- Current - Collector Pulsed (Icm): 100 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 200 W
- Switching Energy: 220µJ (on), 330µJ (off)
- Input Type: Standard
- Gate Charge: 100 nC
- Td (on/off) @ 25°C: 31ns/100ns
- Test Condition: 390V, 20A, 3.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
Related Products
Alpha & Omega Semiconductor Inc.
AOKS40B60D1
Infineon Technologies
IKQ75N120CH3XKSA1
Infineon Technologies
IKB15N65EH5ATMA1
Infineon Technologies
SGP20N60HS
STMicroelectronics
STGWA20H65DFB2
Infineon Technologies
IKD06N60RAATMA2
IXYS
IXGA20N120B3-TRL
Infineon Technologies

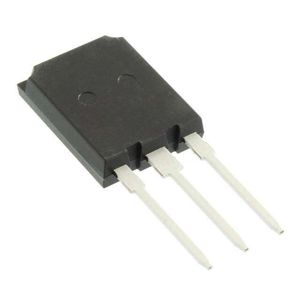

IKQ75N120CS6XKSA1
STMicroelectronics

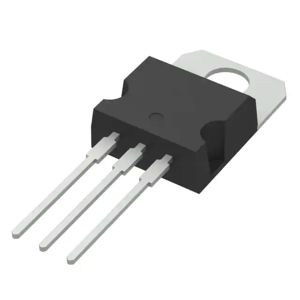

STGP7NC60HD
