STGP7NC60H
STMicroelectronics
STMicroelectronics
IGBT 600V 25A 80W TO220
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STGP7NC60H Single IGBT transistor by STMicroelectronics, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the STGP7NC60H ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the STGP7NC60H for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 25 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 7A
- Power - Max: 80 W
- Switching Energy: 95µJ (on), 115µJ (off)
- Input Type: Standard
- Gate Charge: 35 nC
- Td (on/off) @ 25°C: 18.5ns/72ns
- Test Condition: 390V, 7A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220
Related Products
STMicroelectronics
STGW35NB60S
Infineon Technologies
SIGC39T60EX1SA3
Infineon Technologies
IRGS10B60KDPBF
Infineon Technologies
IRG4RC10UDTRP
STMicroelectronics

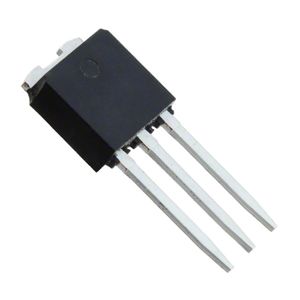

STGD18N40LZ-1
Infineon Technologies

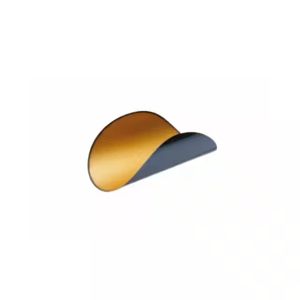

SIGC76T65R3EX1SA1
Infineon Technologies

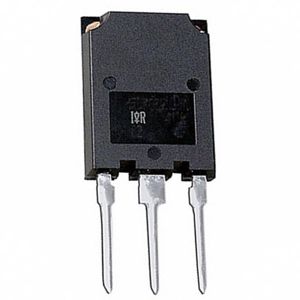

IRG4PSH71UPBF
