STGW40H65DFB
STMicroelectronics
STMicroelectronics
IGBT 650V 80A 283W TO-247
$5.06
Available to order
Reference Price (USD)
1+
$4.31000
30+
$3.70133
120+
$3.24442
510+
$2.80286
1,020+
$2.40700
2,520+
$2.30550
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGW40H65DFB by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGW40H65DFB is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 40A
- Power - Max: 283 W
- Switching Energy: 498µJ (on), 363µJ (off)
- Input Type: Standard
- Gate Charge: 210 nC
- Td (on/off) @ 25°C: 40ns/142ns
- Test Condition: 400V, 40A, 5Ohm, 15V
- Reverse Recovery Time (trr): 62 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247
Related Products

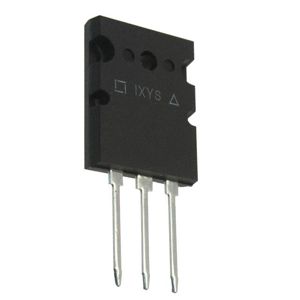

IXYS
