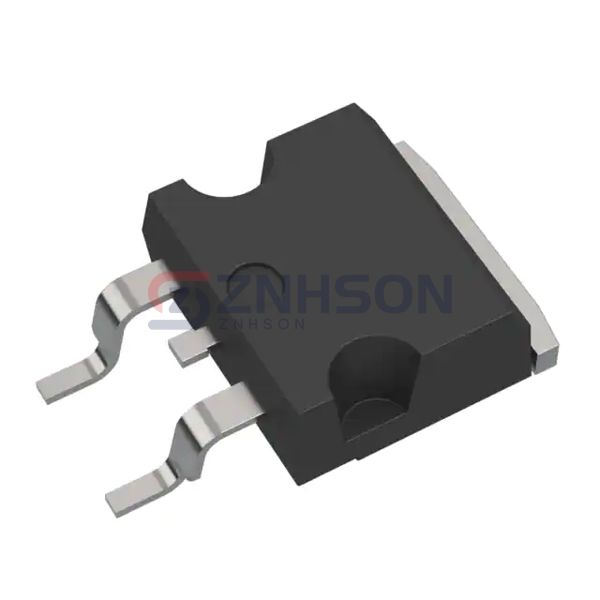

STH13N120K5-2AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 1200V 12A H2PAK-2
$11.23
Available to order
Reference Price (USD)
1+
$11.23000
500+
$11.1177
1000+
$11.0054
1500+
$10.8931
2000+
$10.7808
2500+
$10.6685
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STH13N120K5-2AG from STMicroelectronics sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to STMicroelectronics's STH13N120K5-2AG for their critical applications.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 12A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 690mOhm @ 6A, 10V
- Vgs(th) (Max) @ Id: 5V @ 100µA
- Gate Charge (Qg) (Max) @ Vgs: 44.2 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 1370 pF @ 100 V
- FET Feature: -
- Power Dissipation (Max): 250W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2Pak-2
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
