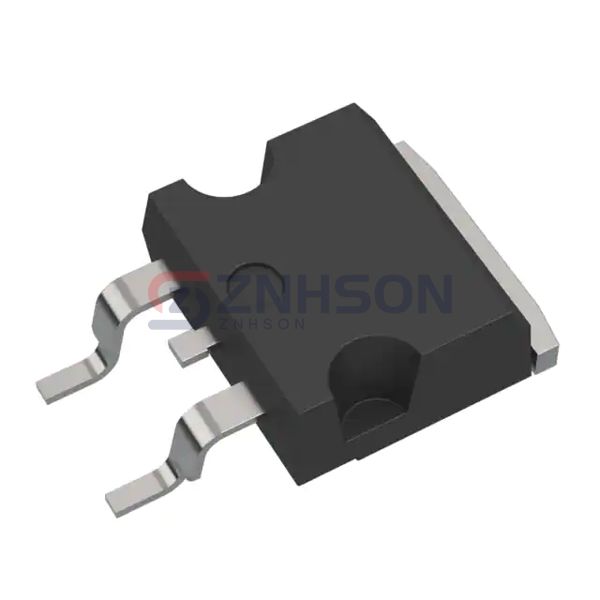

STH275N8F7-2AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 80V 180A H2PAK-2
$6.24
Available to order
Reference Price (USD)
1,000+
$2.83720
2,000+
$2.71092
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the STH275N8F7-2AG by STMicroelectronics, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The STH275N8F7-2AG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose STMicroelectronics.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 80 V
- Current - Continuous Drain (Id) @ 25°C: 180A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.1mOhm @ 90A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 193 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 13600 pF @ 50 V
- FET Feature: -
- Power Dissipation (Max): 315W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2Pak-2
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
