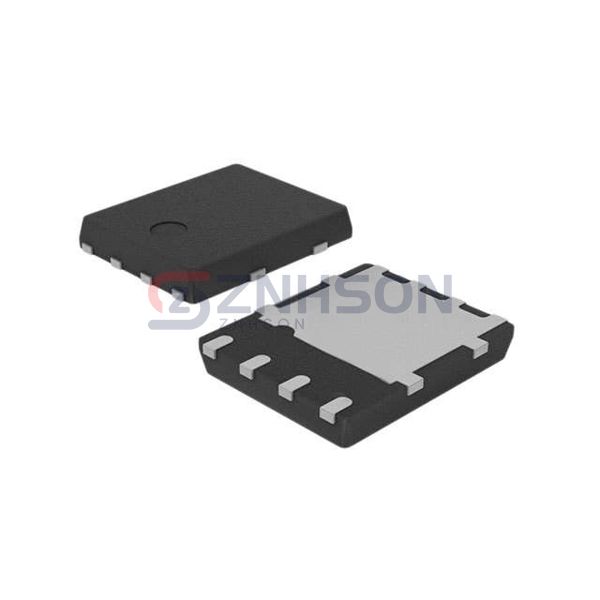

STL260N3LLH6
STMicroelectronics
STMicroelectronics
MOSFET N-CH 30V 260A POWERFLAT
$0.00
Available to order
Reference Price (USD)
3,000+
$0.99792
6,000+
$0.96096
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STL260N3LLH6 by STMicroelectronics is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the STL260N3LLH6 is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 260A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.3mOhm @ 22.5A, 10V
- Vgs(th) (Max) @ Id: 1V @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 61.5 nC @ 4.5 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 6375 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 166W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerFlat™ (5x6)
- Package / Case: 8-PowerVDFN
